Single Phase Pole Mounted Distribution Transformer Oil Immersed Transformer

Key Features





Contact Us >
Description

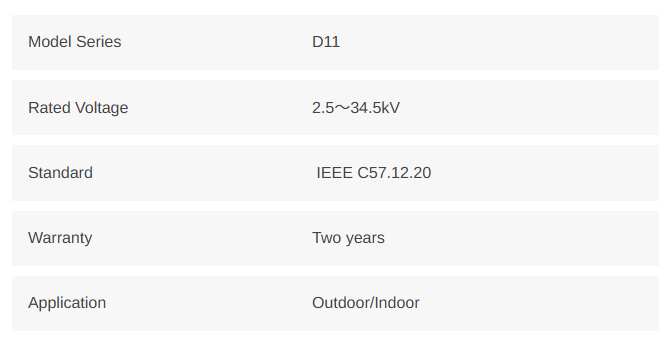

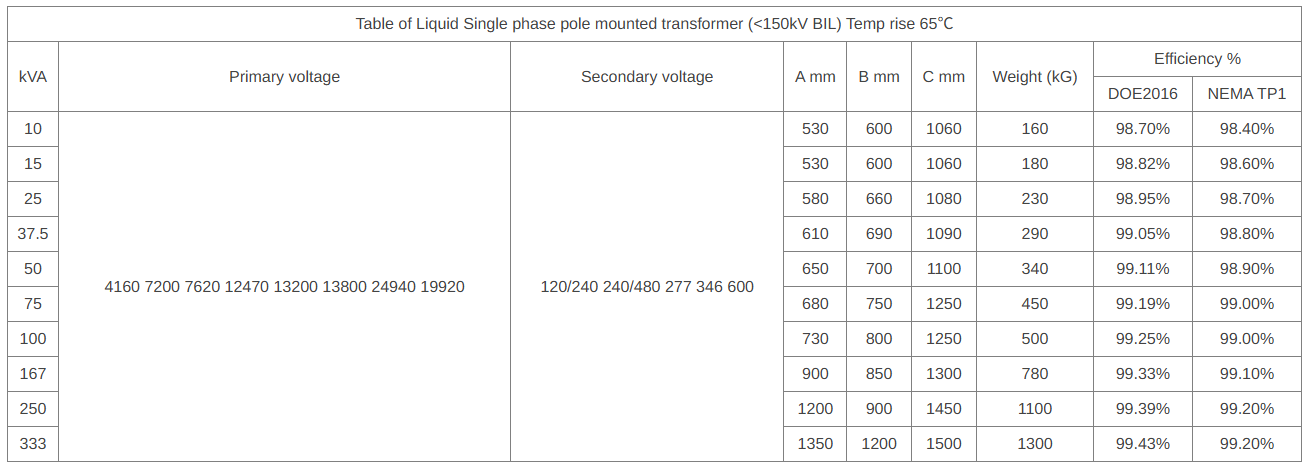

Specifications

General

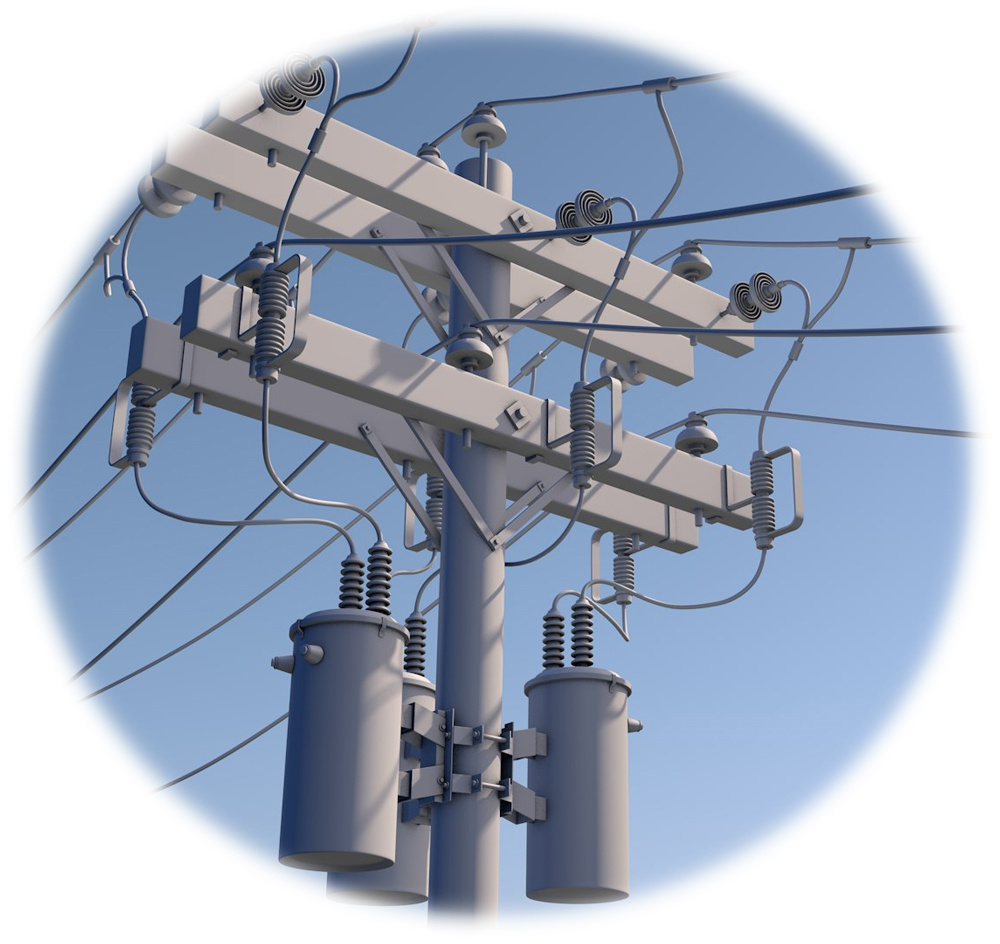

The unit may be direct mounted to a wooden or concrete pole, or cluster mounted on a pole for three phase use. Our single phase overhead distribution transformer is commonly used in various places including rural areas, remote regions and scattered villages to provide high quality power supply for daily lighting, agricultural production and industrial plants. Aside from these, it is also suitable for the energy saving projects for railway and urban grid.


Main Features

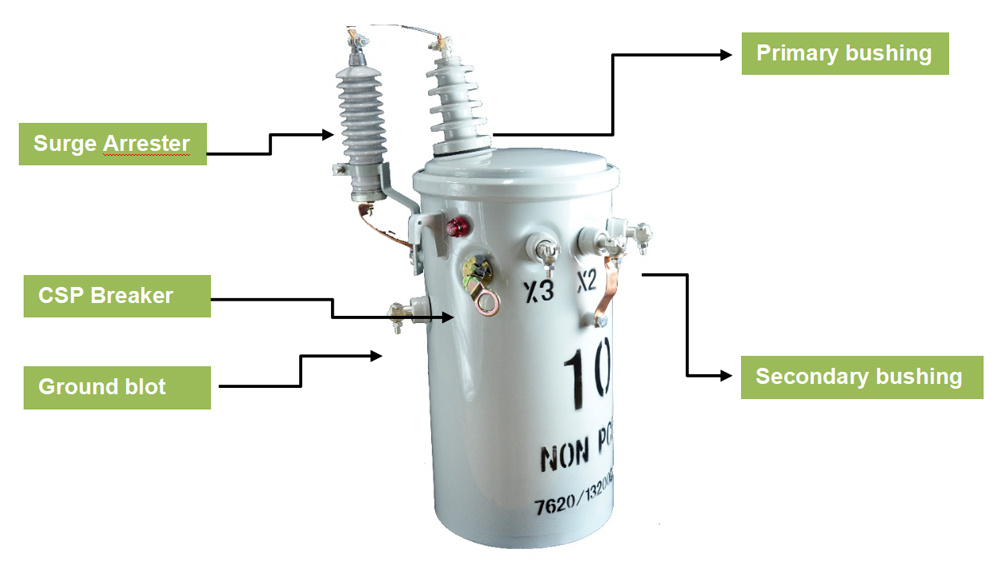

  • Type: Conventional or CSP type

  • Suitable for both indoor or outdoor
  • Ambient temp: -25℃-+40℃
  • Winding temp rise : 55 ℃ or 65 ℃

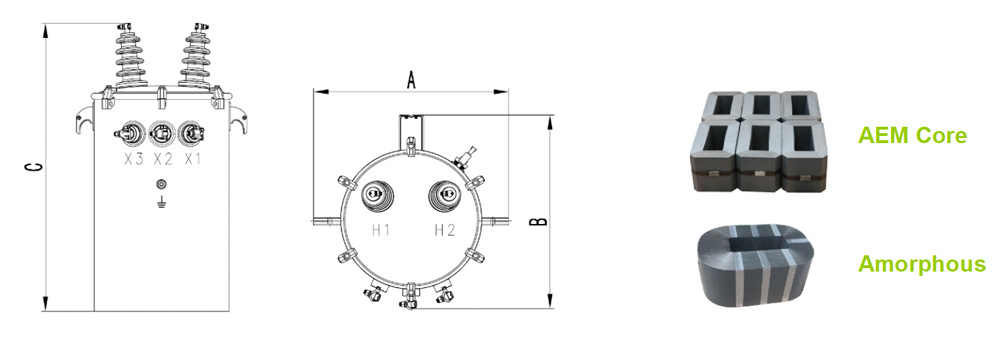

  • Core: CRGO or Amorphous Core
  • Efficiency standard: DOE 2016 or NEMA TP1
  • Winding material : CU or AL
  • Frequency: 50HZ or 60HZ
  • Capacity : 5kVA to 333kVA

Quality Assurance

 Routine Tests

  • In-process Core Loss Test
  • Transformer Turns Ratio Test
  • Winding Resistance Test
  • Polarity and Phase Displacement Test
  • Insulation Power Factor Test
  • Liquid Insulation DBV Test
  • No Load Loss & Excitation Test
  • Impedance Voltage & Load Loss Test
  • Voltage Ratio Test
  • Applied Potential Test
  • Induced Potential Test

  Type Tests
  • Temperature Rise Test
  • Basic Impulse Level (BIL)
  • Sound Level test
