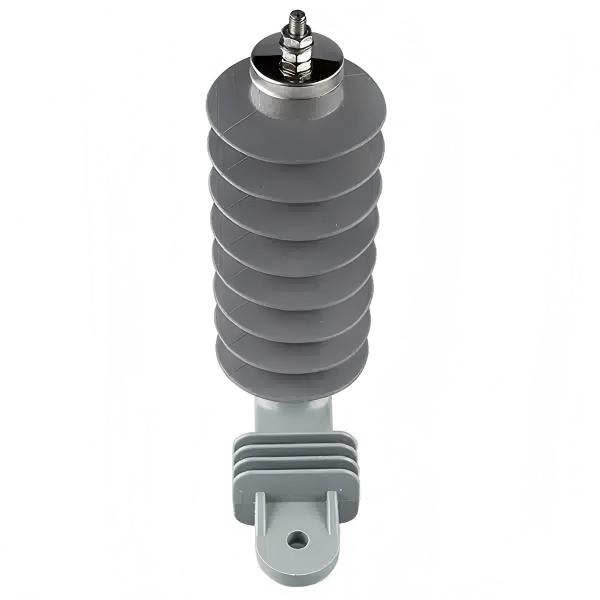

Product model: MTLA5-21
Rated voltage (kV): 21
MCOV (kV): 17
Residual voltage (kV) 1/10μs steep current impulse: 66.5
Residual voltage (kV) 8/20μs lightning current impulse: 63
Residual voltage (kV) 30/60μs switching current impulse: 53.9
2000μs square wave impulse current withstand: 150
4/10μs high current impulse (kV): 65
Length H (mm): 205
Their applications include:
Protecting power distribution networks
Safeguarding telecommunication systems
Ensuring the reliability of data centers and servers
Enhancing the safety of renewable energy installations, such as solar and wind farms

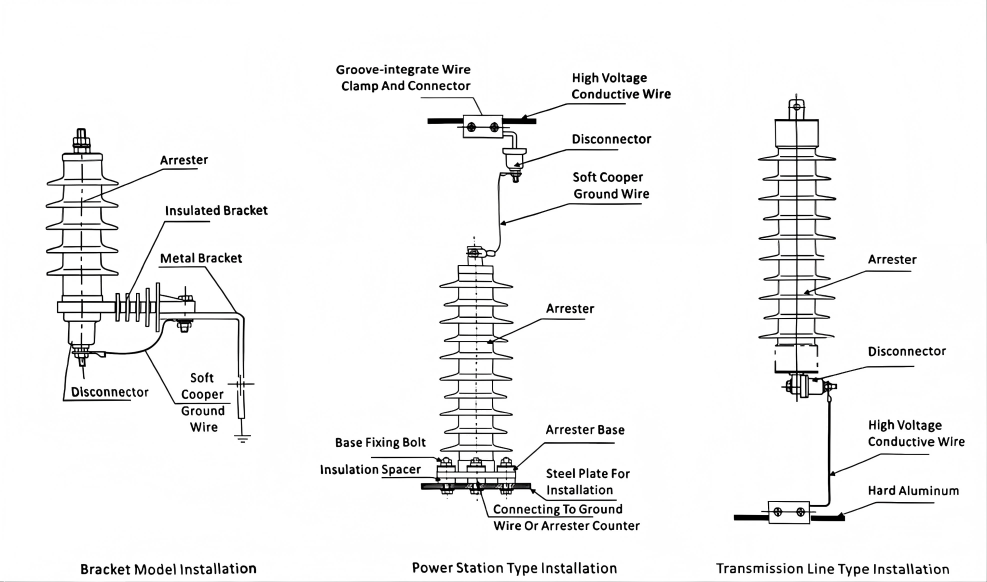

Where to Install a Surge Arrester: Best Practices and Guidelines:
At the Service Entrance: This is the first line of defense, capturing surges as soon as the power enters the facility.
At Distribution Panels: Secondary installations at distribution panels help contain any surges that may have bypassed the primary device, offering additional protection.
Near Sensitive Equipment: In environments where critical machinery or data centers are in operation, additional surge arresters may be installed to shield these sensitive loads directly.
