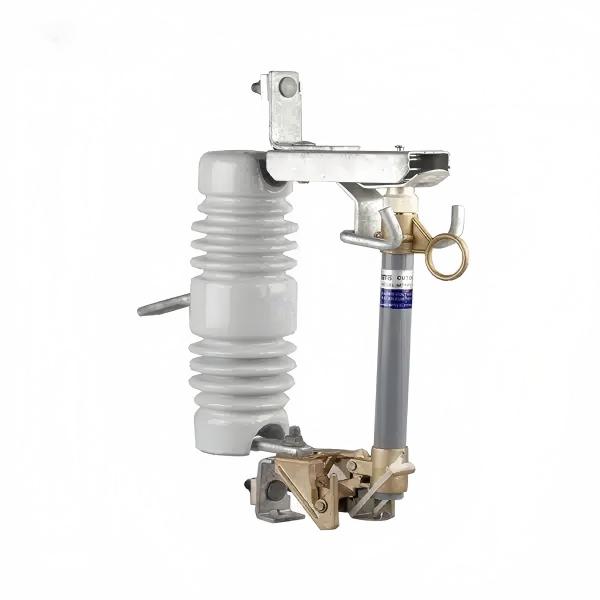

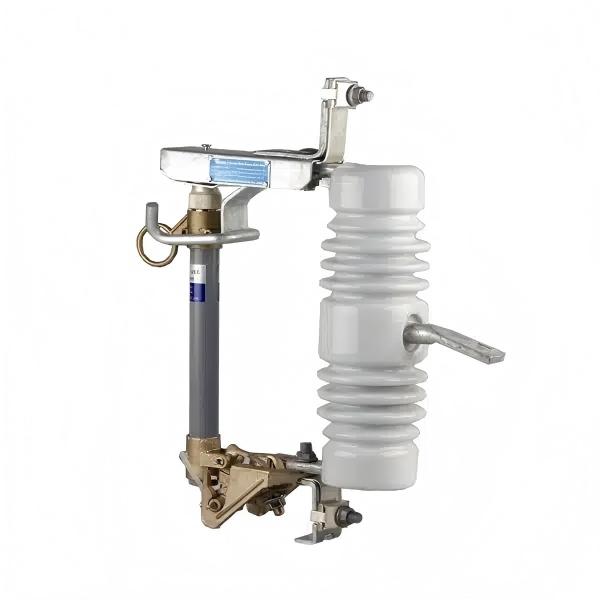

Model: MTFP1-15
Rated voltage (kV): 12-15
Rated current (A): 100(200)
Breaking current (kA): 6(8)
Impulse voltage (kV): 110
Power frequency withstand voltage (kV): 42
Creepage distance (mm): 220

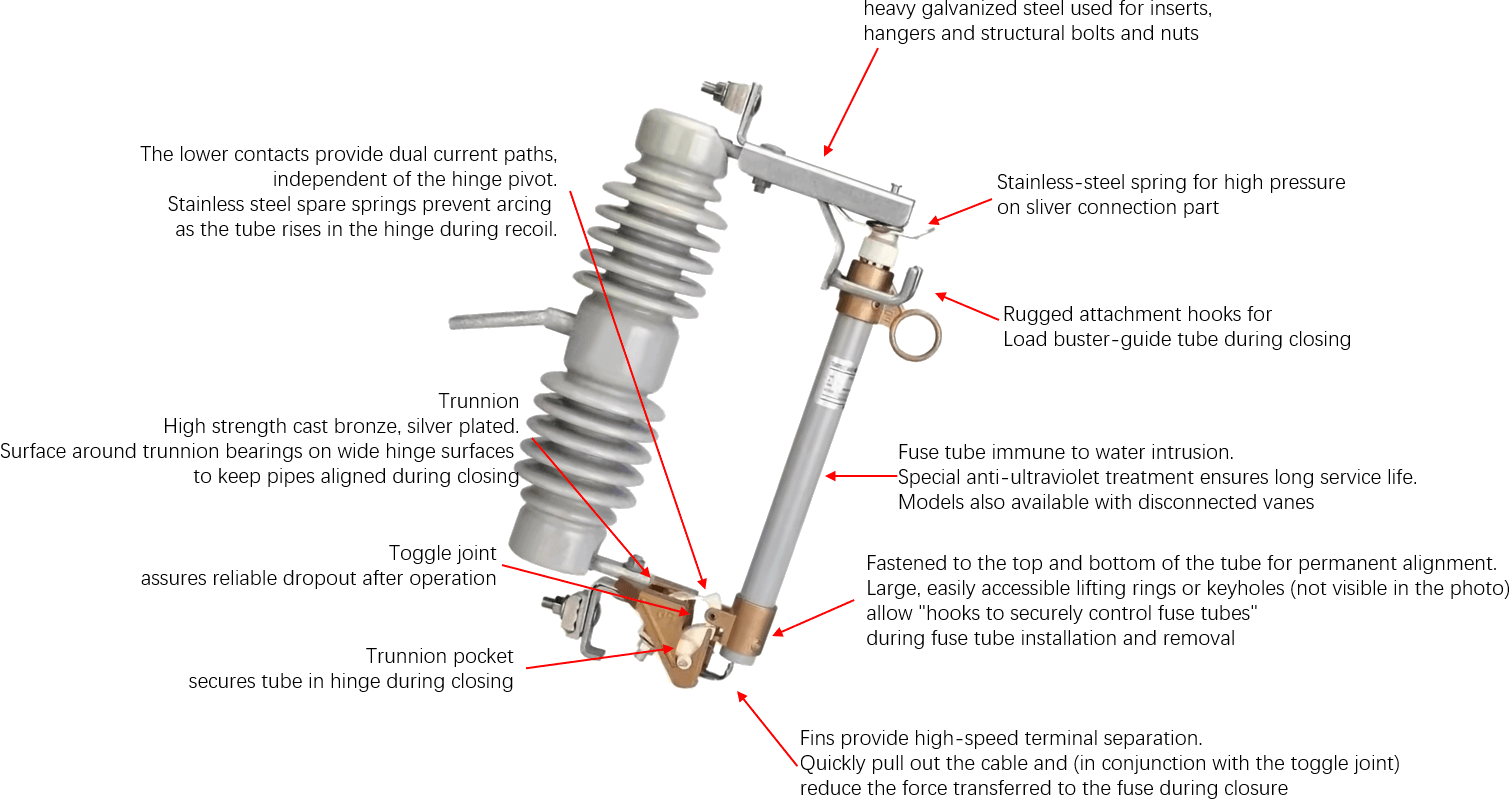

Fuse cutouts fulfill several crucial functions within an electrical distribution system. Their design is focused on ensuring operational safety, protecting valuable assets, and minimizing system downtime. In this section, we delve into the primary roles of fuse cutouts and explain how these functions contribute to overall system reliability.
Indicating an Open Circuit
One of the fundamental functions of fuse cutouts is to provide a clear and immediate indication of an open circuit. When the current flowing through a circuit exceeds safe operating levels, the fuse element in the cutout reacts by opening the circuit. This process not only protects the system from further damage but also offers a visual signal that maintenance or repairs are required.
Protecting Against Ground Fault Currents
When a ground fault is detected, the fuse within the cutout operates to extinguish the arc and break the circuit, thereby stopping the surge of current. This rapid response not only protects downstream equipment but also prevents potentially hazardous situations such as electrical fires. The ability of fuse cutouts to guard against ground fault currents is one of their most critical functions, ensuring that faults are contained before they can escalate into more serious problems.
Safeguarding Distribution Transformers
Typically, a fuse cutout houses a replaceable fuse that is rated to protect a transformer by interrupting excessive current flow. For example, a 20A fuse installed in a cutout will open the circuit if the current exceeds this rating for more than a few seconds. This timely intervention protects the transformer from overheating and potential failure. Moreover, the open state of the fuse cutout offers a clear indication that the protective device has operated, signaling the need for fuse replacement.
